SEAL  |  SKU: 64296

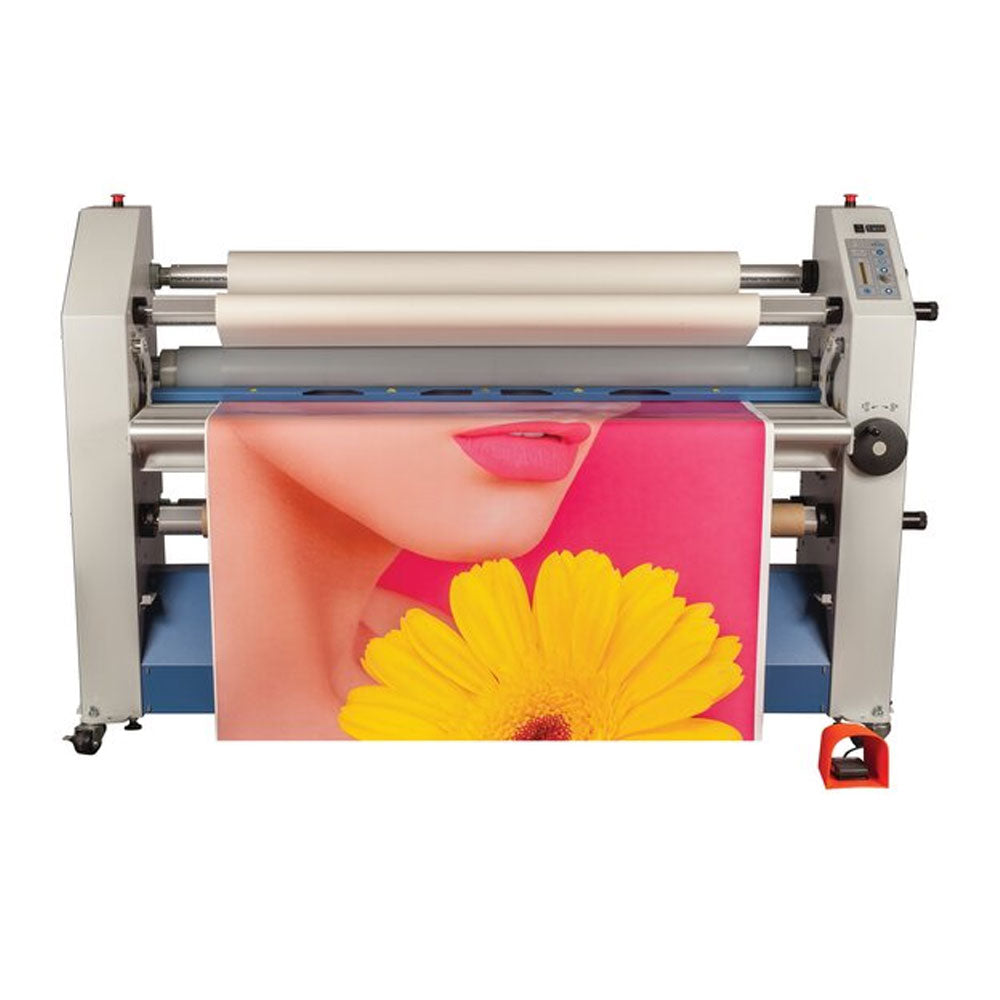

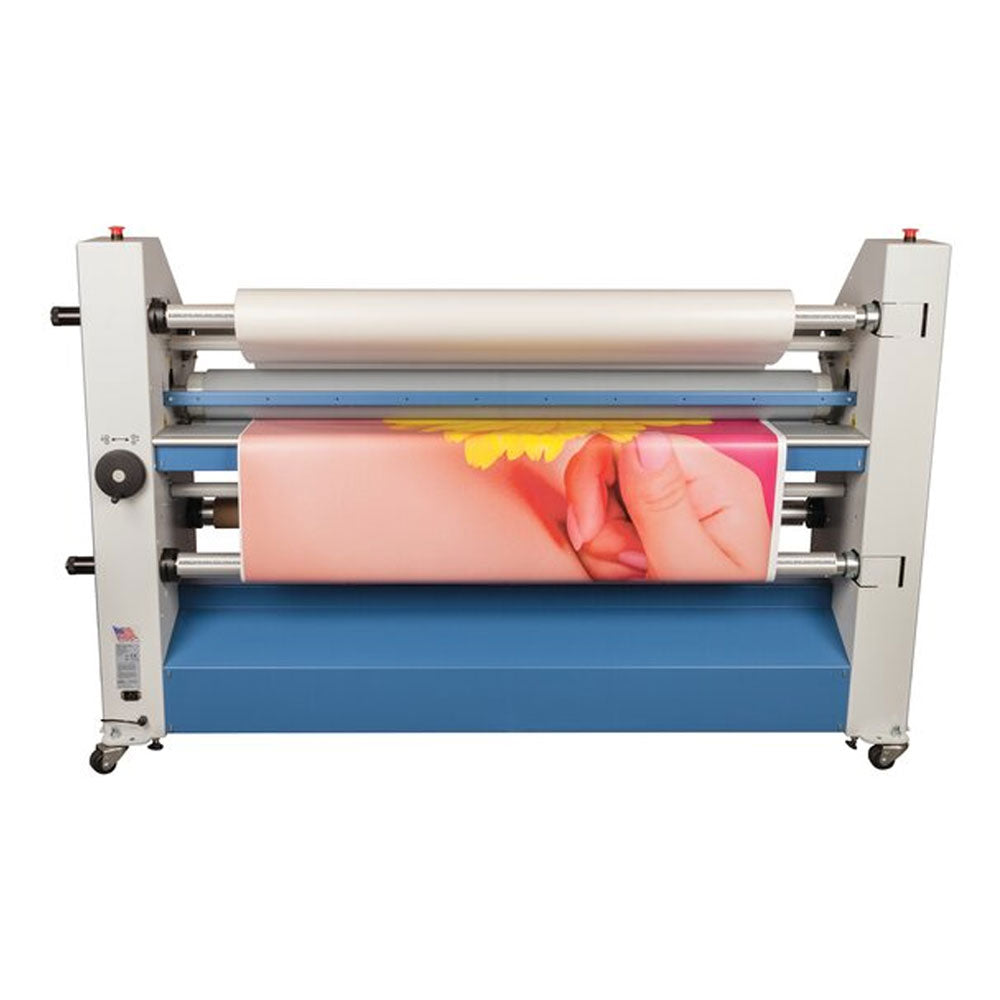

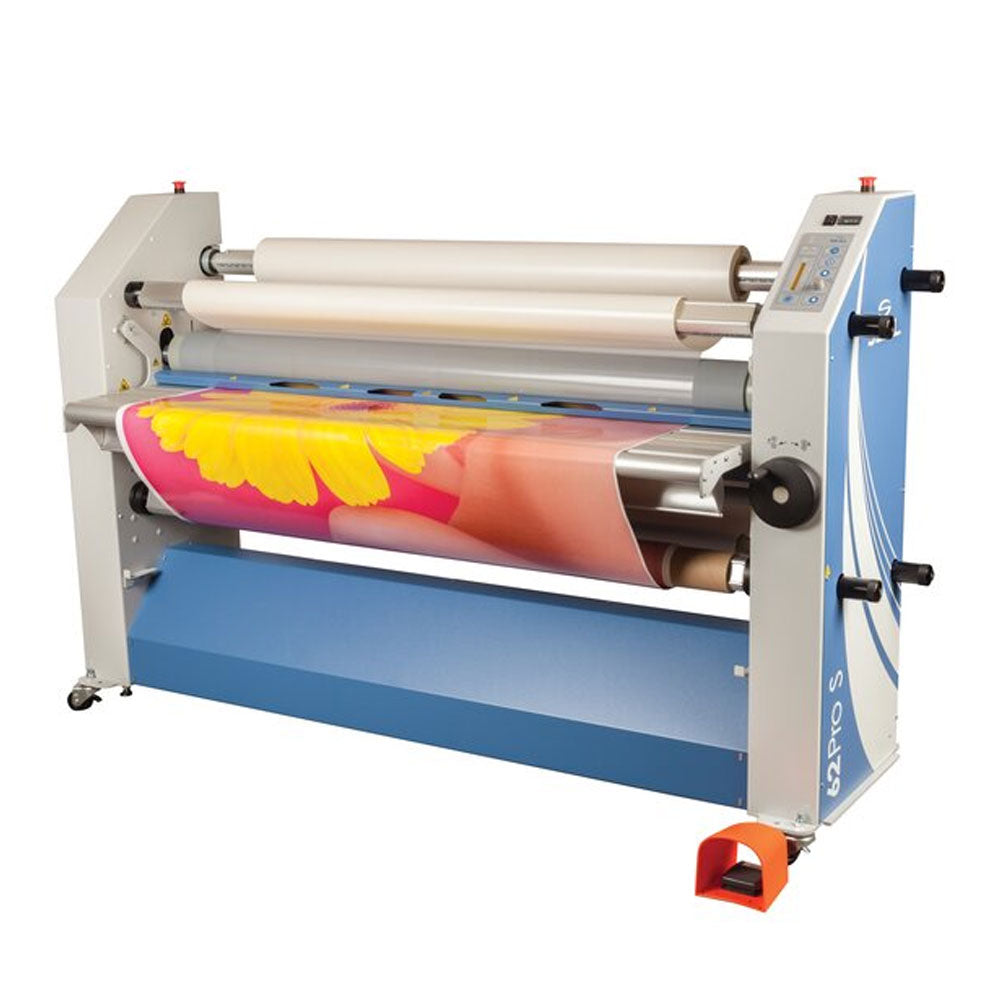

SEAL 62 Pro S 61" Wide Format Roll Laminator

$38,885.94
Shipping calculated at checkout.
Additional Freight Charges Apply

Please call (800) 925-0054 or email service@laminationdepot.com for a freight quote.


The SEAL 62 Pro S is a 61" wide mounting laminator and encapsulator offering industrial performance at exceptional value. With fully adjustable top roller temperature, speed and pressure settings, and a sturdy uni-frame construction, the 62 Pro S is ideal for the more experienced operator. Also includes comprehensive safety system with self checking eyes and emergency stops. TUV SUD Certified in US/Canada.

  • Heat assisted top roller for superb lamination performance
  • Laminates graphics up to 61" wide
  • Capable of laminating at speeds up to 20'/minute
  • 1 1/2" manual nip adjustment allows for precise operation and accommodates most substrates
  • Roll-to-roll operation (from bottom unwind) to accommodate applications including vehicle wraps
  • 14.28 lbf/in (2.5n/mm) line pressure for superior cold lamination

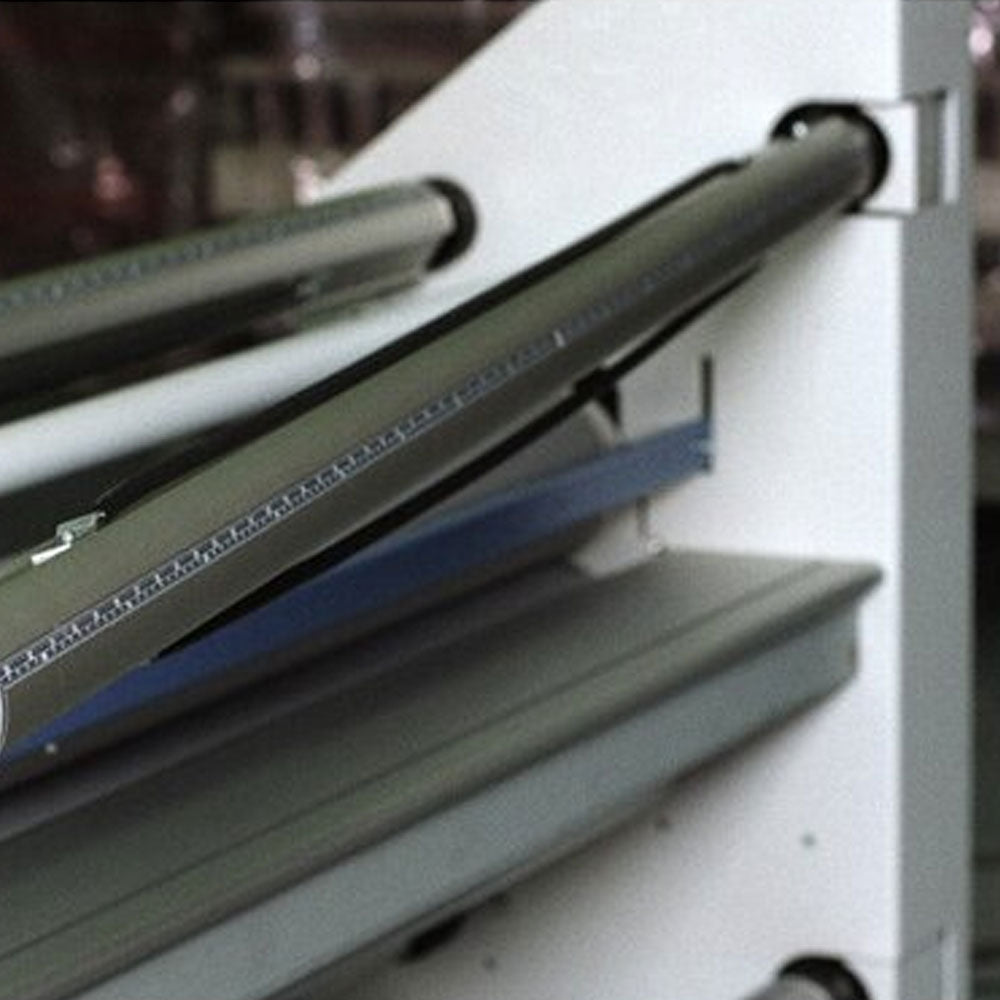

  • Lightweight cantilever and drop-in supply shafts with auto-grip for easy loading of materials in tight spaces
  • Auto-grip upper take-up shaft for winding release liners
  • Exclusive ‘stay-put' swing up feed table keeps table up, making media handling and set-up a snap
  • Comprehensive safety system with emergency stops and self-checking safety eyes
  • Foot switch for hands free operation
  • Ergonomic touch pad control panel
  • Included roll trough to keep rolled prints in place before and during lamination
  • Includes easy-in feed table
⬇️ Download Product Manual

Product Specifications

  • Operation: 1-Sided Lamination, 2-Sided Lamination, Mounting
  • Cold Lamination: Yes
  • Laminating Width: 61”
  • Core Size: 3”
  • Max Film Thickness: 3.5 Mil
  • Max Mounting Thickness: 1-1/2"
  • Heating Method: Heated Rollers
  • Warm-Up Time: 60 min
  • Max Speed: 20 ft/Minute
  • Adjustable Speed: Yes
  • Max Temperature: 284°F
  • Adjustable Temperature: Yes
  • Reverse Function: Yes
  • Auto Shutoff: No
  • Additional Features: Drop-In Supply Shafts, Auto-Grip Take-Up Shaft, Swing-Up Feed Table, Safety Eyes, Foot Switch, and In-Feed Table
  • Electrical Requirements: 230VAC 50/60Hz 16A
  • Dimensions: 56.3" x 87.4" x 17.7"
  • Weight: 850 lbs
  • Warranty: 2 years
