Rhin-O-Tuff  |  SKU: RT-HD7000

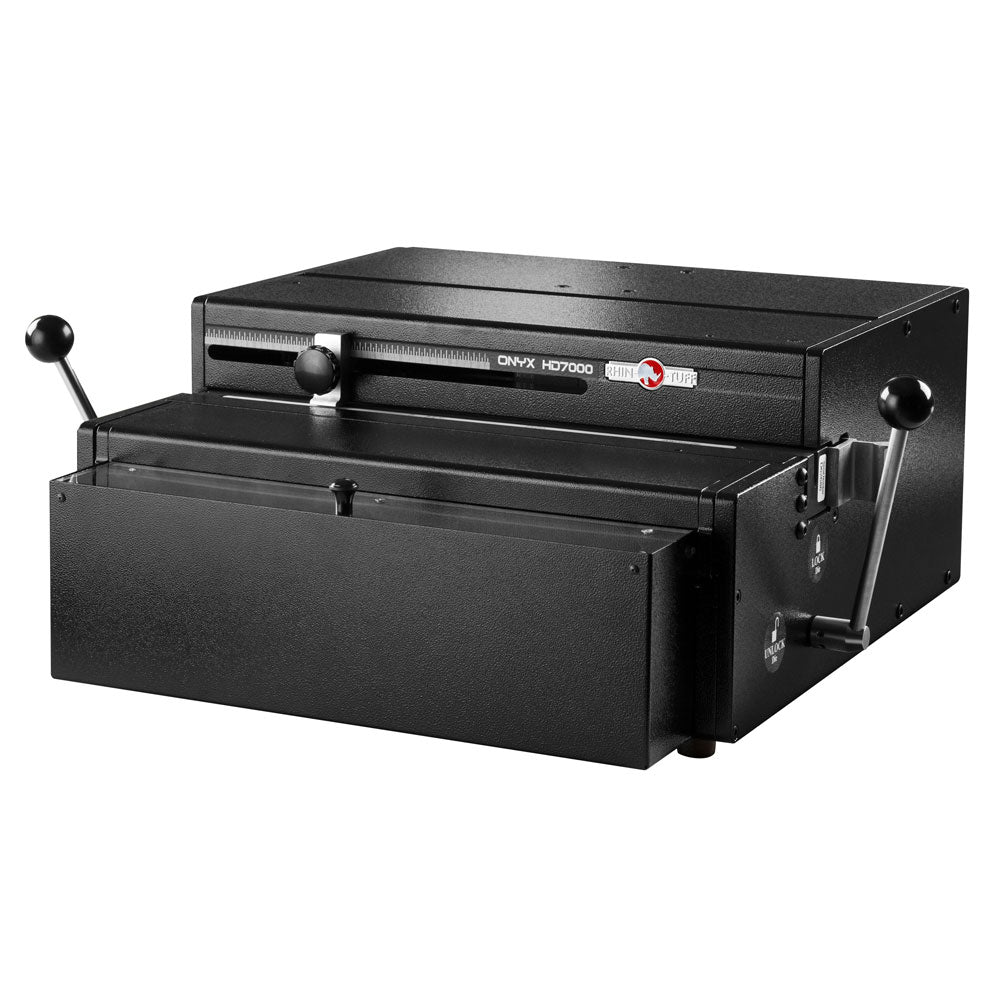

Rhin-O-Tuff HD7000 14" Vertical Table Top Modular Punch

$3,748.00
Shipping calculated at checkout.
Select Die Option

Looking to for a high-quality modular punch that can handle mid-to-high volume use? The Rhin-O-Tuff Onyx HD7000 14" Open-Ended Table Top Modular Punch is an excellent machine to use for event programs, cookbooks, business reports, catalogs, and marketing materials. All Staples and FedEx Office locations in the US use this machine!

The all metal construction of the Rhin-O-Tuff HD7000 adds to its rugged durabilty. It features exceptional accuracy and efficiency, with its quick-change die system enabling rapid, tool-free die pattern swaps in just 30 seconds. With 18 die options, you can choose from a variety of binding styles with just one machine.

Download the HD7000 Operator Manual

Product Features
  • Punches: Coil, Comb, & Wire
  • Punching Operation: Electric
  • Die Type: Modular (Interchangeable)
  • Die Options: 18 punch patterns, all 14" open-ended, extra-capacity dies
  • Feeding: Vertical
  • Open Throat: Allows for wider applications
  • Disengaging Pins: Allows for smaller or non-standard pages
  • Paper-to-Pin Sight Alignment: Offers easy alignment for balanced hole-to-edge margins, even on odd-sized applications
  • Quick Change Die System: Hassle-free die change process in just 30 seconds, no tools required
  • Premium Paper Stop & Scale System: Allows for quick adjustments and precise positioning
  • Large EZ View Chip Tray: Holds punching waste, keeping your workspace clean and tidy
  • Overload Detection Feature: Triggers an auto-reversing function to reduce jamming in the punch
  • Foot Pedal: Standard foot pedal included (to add an optional Palm Switch and/or Versa Switch, please contact customer service)
  • Compatibility: Compatible with APES (Auto Paper Ejector & Stacker) and can be mounted with PAL-14 & PAL-M (Pick-A-Lift).
  • # of Punch Cycles: 56 cycles/min
  • Electrical Requirements: AC 115V, 4 AMPS, 60 Hz
  • Dimensions: 16 3/4" L x 17" W x 8" H
  • Machine Weight: 87 lbs
  • Warranty: 3 Years
  • 100% Made in the U.S.A.

Die Specifications
Die Binding Type Hole Pitch Diameter Margin Sheets Per Punch
2:1 Rectangle (Wire) Wire 0.500″ 0.250″ Wide
0.125″ Tall 		0.188″ 30
2:1 Round (Wire) Wire 0.500″ 0.250″ 0.250″ 30
2:1 Square (Wire) Wire 0.500″ 0.250″ 0.250″ 30
2.5:1 Round (Coil) 0.400″ Pitch Coil 0.400″ 0.250″ 0.250″ 30
3:1 Round (Coil) 0.333″ Pitch Coil 0.333″ 0.172″ 0.168″ 30
3:1 Round (Thumbcut) (Wire) Wire 0.333″ 0.172″ 0.168″ 40
3:1 Square (Wire) Wire 0.333″ 0.156″ 0.179″ 30
3:1 Square (Thumbcut) (Wire) Wire 0.333″ 0.156″ 0.179″ 30
4:1 Oval (Coil) 6mm Pitch Coil 6mm 0.138″ Wide
0.173″ Diameter 		0.188″ 30
4:1 Oval (Coil) 0.2475″ Pitch Coil 0.2475″ 0.156″ Wide
0.188″ Diameter 		0.188″ 30
4:1 Oval (Coil) 0.250″ Pitch Coil 0.250″ 0.138″ Wide
0.173″ Diameter 		0.188″ 30
4:1 Round (Coil) 0.248″ Pitch Coil 0.248″ 0.188″ 0.188″ 30
4:1 Round (Coil) 0.250″ Pitch Coil 0.250″ 0.172″ 0.188″ 30
5:1 Round (Coil) 0.200″ Pitch Coil 0.200″ 0.141″ 0.160″ 30
9/16" Rectangular (Comb) Comb 0.5625” 0.313” Wide
0.125” Tall 		0.245" to 0.156" 30
3-5-7 Hole (Ring Bind) Ring Bind 1″
1″
2.25″
2.25″
1″
1″ 		0.313" 0.375" 40
3:1 Square (Oversized) (Wire) Wire 0.333" 0.1875" 0.179" 30
VeloBind VeloBind 1" & 4 Prong 0.125" 0.125" 40
