Rhin-O-Tuff  |  SKU: RT-CBS3000

Rhin-O-Tuff Electric Coil Binding System 3000

$1,999.00
Shipping calculated at checkout.

Rhin-O-Tuff Office Elite Series

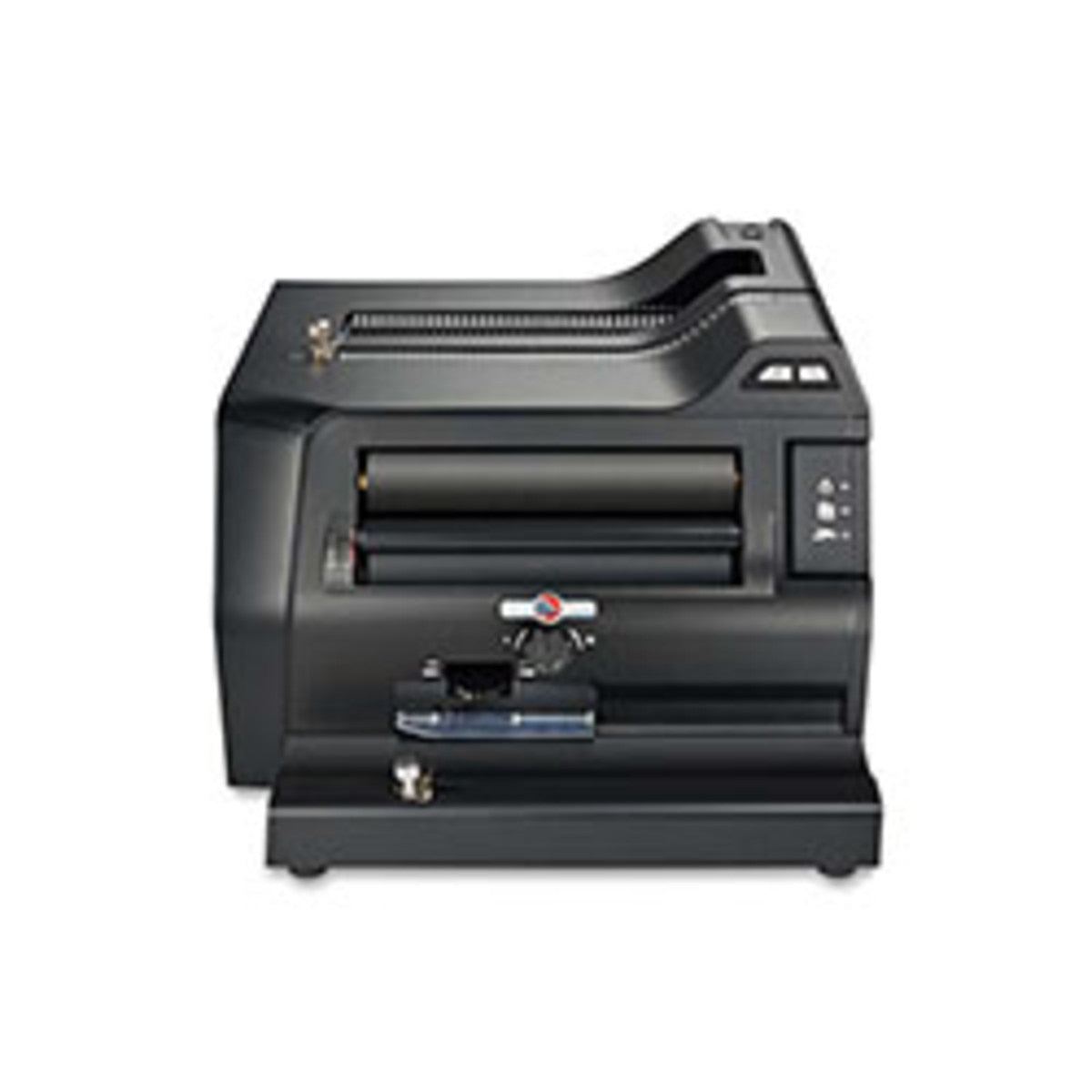

The Rhin-O-Tuff Coil Binding System 3000 is an all-in-one electric coil binding system that combines electric punching, coil insertion and crimping into a compact, modern design perfect of all office and small print shop environments.

Intuitive controls with LED panel provide a simple way for today’s professionals to turn loose pages into impressive looking documents in three easy steps: it punches, inserts and crimps coil booklets with coils as small as 6mm or as large as 50mm without additional tools or separate machines.

Unique Features:

  • Reliable Power Punching: Punches up to 20 sheets of 20lb. bond at once with punch button or hands-free foot pedal.
  • Smart Design:
    • Full-size, dual coil rollers improve binding efficiency.
    • Larger oval punch pins can improve coil insertion time by up to 50%.
  • Power Crimper: Built-in electric crimper eliminates the need for cumbersome hand crimpers or pliers.

Additional Features:

  • Open-Ended Punch Throat for longer documents up to 23.4 in.
  • Control Buttons: 1-touch punch button and coil rollers (On/Off button)
  • Full-Length Dual Coil Rollers: Electric top roller works with passive bottom roller to easily feed coil through oval holes
  • Coil Roller Adjustment Dial: Dial turns to easily adjust for varying coil diameter sizes
  • Power Crimper Shield holds coils in place during crimping
  • Power Crimper Adjustment Dial adjusts crimper knives based upon coil diameter, ensuring a perfect crimp every time
  • Adjustable Edge Guides ensure centered punching and crimping
  • Paper Chad Waste Drawer with clear window allows user to view drawer for emptying
  • Margin Control Dial: Push and turn dial for correct punch margin for each coil diameter

Specifications

Hole Size/Pitch: Oval (4mm x 5mm)
4:1 Pitch with 0.2475 in. Spacing
Punch Operation: Electric
Punch Capacity: Up to 20 Sheets (20# Paper)
Inserting Operation: Electric (On/Off Switch)
Binding Capacity: Up to 2 in. Electric
440 sheets (20# Paper)
Crimping Operation: Electric (Foot Pedal)
Crimp Capacity: 6mm-50mm Diameter Coils
Disengagable Dies: All 47 Pins
Punching Length: Up to 23.4 in.
Dimensions: 18.3 in. W x 18 in. D x 12 in. H
Weight: 75 lbs.
Warranty: 1 Year
