Pro-Lam  |  SKU: PL227HP

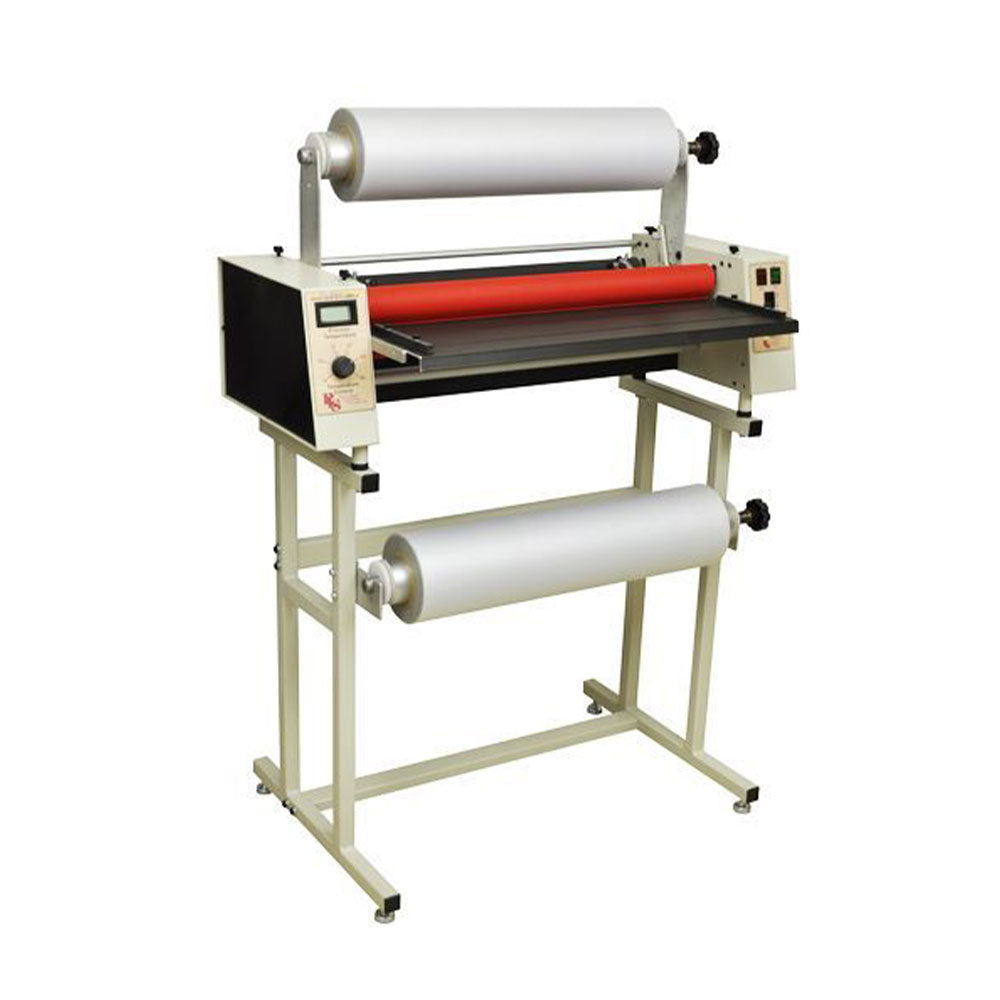

Pro-Lam PL227HP 27" High Performance Laminator

$4,700.00
Shipping calculated at checkout.

Additional Freight Charges Apply. Please call 1-800-925-0054 or email service@laminationdepot.com for a freight quote.


The Pro-Lam PL227HP is a high-performance laminator that bridges the gap between school and office laminators and expensive entry-level commercial-grade laminating machines. This versatile laminator works with both heat-activated and PSA (pressure-sensitive) materials, including polyester, polypropylene, nylon, vinyl, and other plastics up to 10 Mil thick.

  • Fast, Quality Results: Runs at a top speed of 16 ft / minute with lightweight film thicknesses
  • Mounting: Apply images with heat-activated adhesive to boards up to 1/4" thick
  • Cooling Fans: Two fans bring freshly laminated materials back down to room temperature quickly, ensuring a flat, bubble-free result
  • Slitters: Two microadjustable slitters included
  • Energy Saving: Turn it on when you need it - it warms up in under 4 minutes
  • Machine Stand: Welded steel stand included
  • Made in the USA

Download the Pro-Lam Operator Manual

Product Specifications

  • Operation: 1-Sided Lamination, 2-Sided Lamination, Mounting
  • Cold Lamination: Yes
  • Laminating Width: 27"
  • Core Size: 3"
  • Max Film Thickness: 10 Mil
  • Max Mounting Thickness: 1/4"
  • Heating Method: Heated Rollers
  • Warm-Up Time: 5 Minutes
  • Max Speed: 16 ft/Minute
  • Adjustable Speed: Yes
  • Max Temperature: X°F
  • Adjustable Temperature: Yes
  • Reverse Function: Yes
  • Auto Shutoff: No
  • Additional Features: Laminator Stand, 2 Cooling Fans, Air Cooled Motor Drive, and Micro Adjustable Slitter (For Film Trimming)
  • Sold Separately: 1" core mandrel, stand wheels, core stops, additional slitters, and feed guides. Please contact Customer Service for details.
  • Electrical Requirements: 220V 60Hz 1900W 20A
  • Dimensions: 28"W x 20"D x 16"H
  • Weight: 154 lbs
  • Warranty: 1 Year
