MBM FoilGlazer II

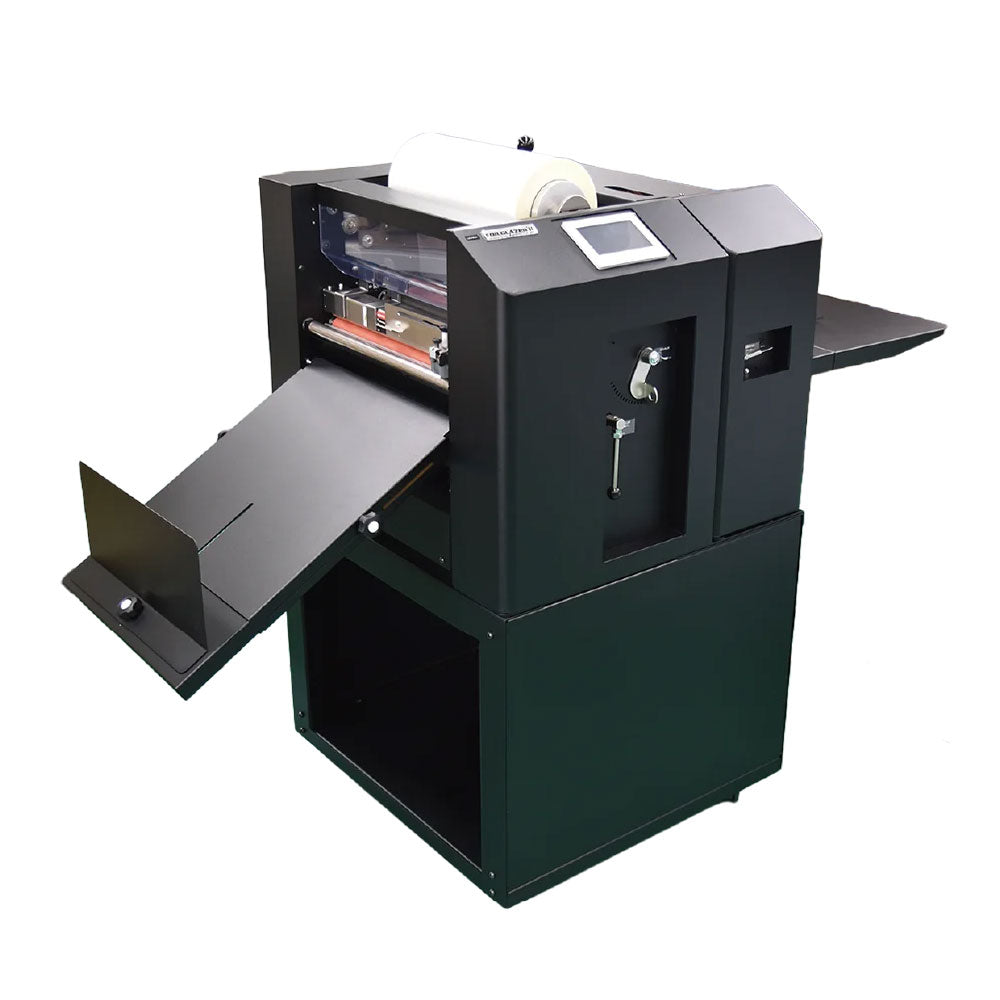

The MBM Laminator and Foil Fuser, Foilglazer II, is a compact and robust single-sided laminating and foil-fusing machine, ideal for laminating and embellishing digitally printed, short-run jobs. It accommodates paper sizes up to 14.3” x 23.6” and features an easy-to-use 4.3” color touch screen with an inching switch and pressure roller lifting lever. The automatic air suction feeding system ensures consistent feeding for various print stocks, ranging from 110gsm to 400gsm, and various laminating films. Ideal for on-demand foil fusing, it works with any color foil rolls on black toners to enhance digital prints. The Foilglazer II offers intuitive operation, with a maximum laminating speed of 16.4 ft/min and 9.84 ft/min for Foilglazing. It also features an automatic film cutting mechanism for efficient, hands-free operation.

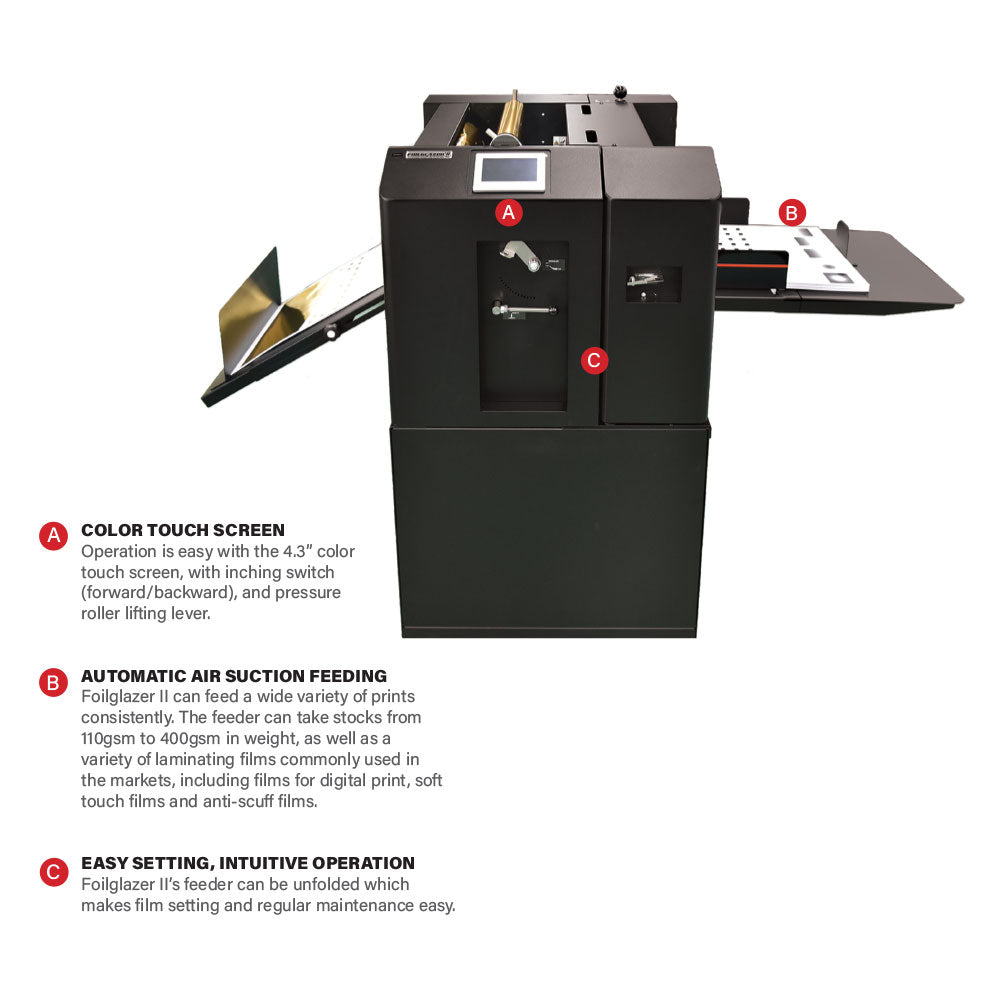

• User-Friendly Interface: Features a 4.3” color touch screen with intuitive controls, including an inching switch and pressure roller lifting lever for easy operation and setup

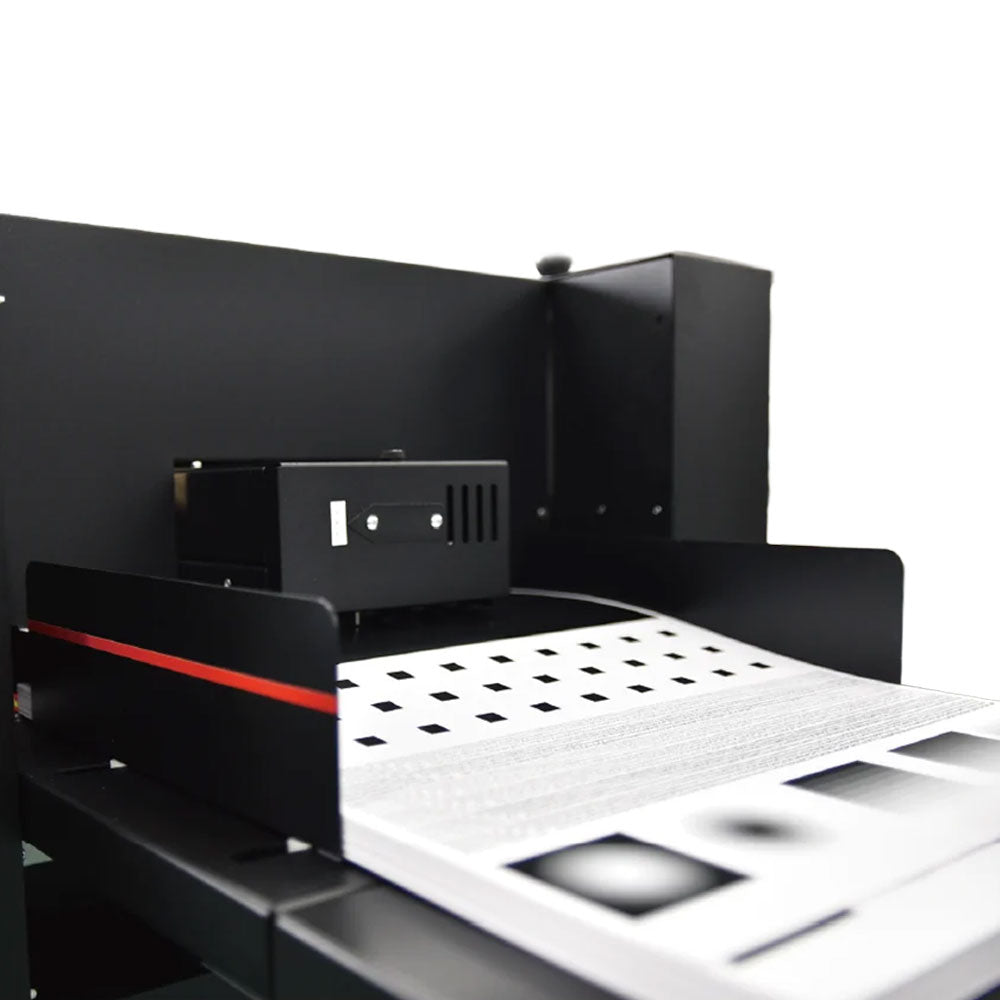

• Versatile Feeding System: Equipped with an automatic air suction feeder that consistently handles various print stocks (110gsm to 400gsm) and laminating films, ensuring smooth processing of digital, short-run jobs

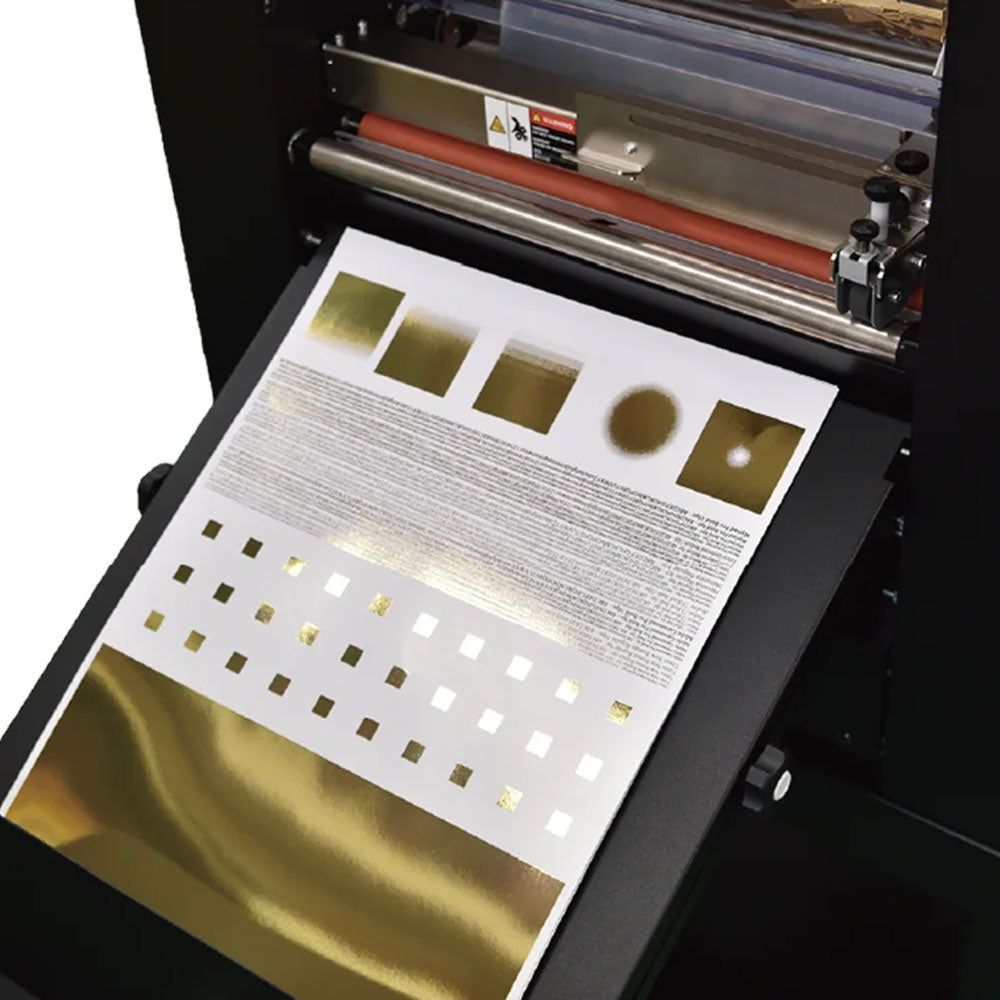

• On-Demand Foil Fusing: Enables foil glazing with any color foil rolls on black toner, perfect for adding high-value embellishments to digitally printed materials
• Efficient Productivity: Supports laminating speeds up to 16.4 ft/min and foil glazing at 9.84 ft/min, with an automatic film cutting mechanism allowing hands-free, continuous operation
• Compact & Robust Design: Accommodates paper sizes up to 14.3” x 23.6”, weighs 254 lbs, and includes foldable feeder for easy film loading and maintenance, making it ideal for on-demand and short-run finishing needs.
• Compressor Requirements: Requires an external air compressor with a minimum discharge of 0.18 cfm, tank capacity over 1.1 gallons, tube diameter of 6mm OD and 4mm ID, and minimum pressure of 0.6 MPa (87 psi) for optimal operation
• 1-year limited warranty, excluding wearables
