Formax  |  SKU: FD402TA1

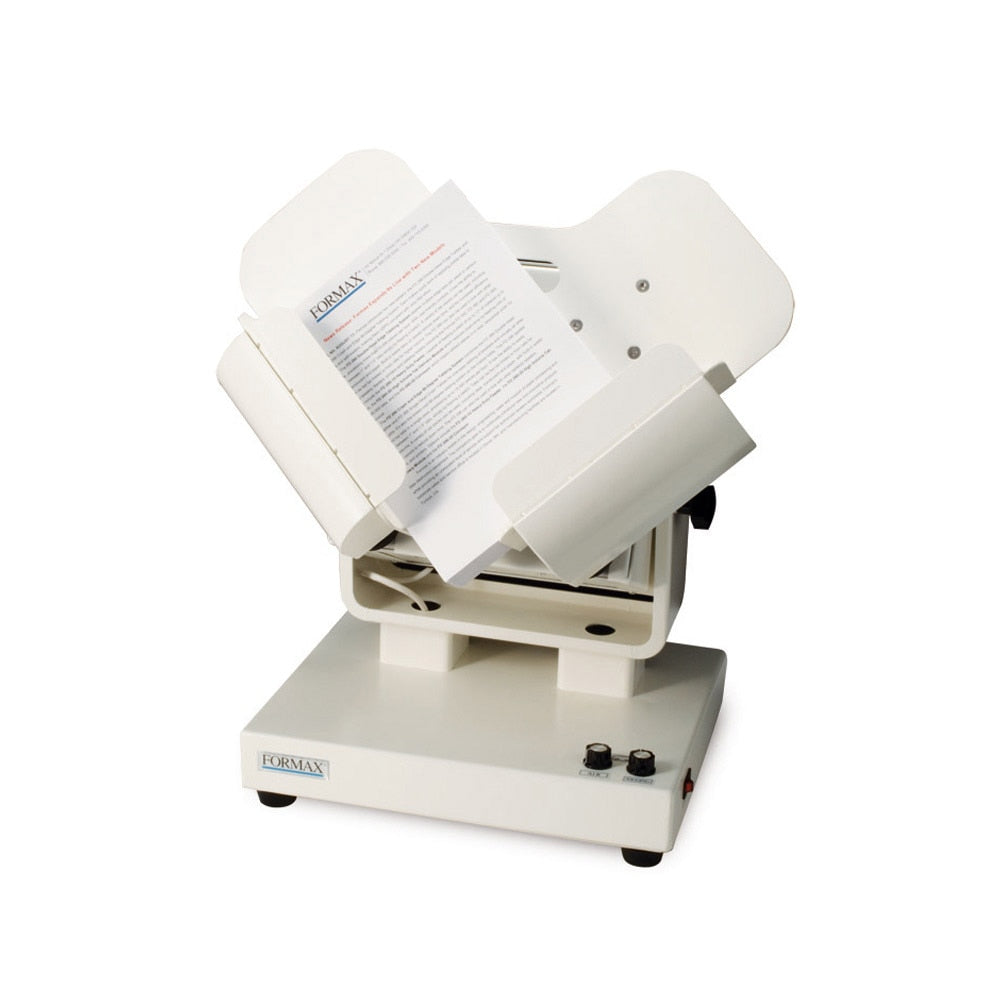

Formax FD 402TA1 Tabletop Air Jogger

$1,938.00
Shipping calculated at checkout.

Additional Freight Charges Apply. Please call 1-800-925-0054 or email service@laminationdepot.com for a freight quote.


Align and dry printed sheets in a single step!

The FD 402TA1 Tabletop Air Jogger is a compact solution for those who need jogging power in smaller print shops or production environments while still offering the ability to jog 12" x 18" paper. The FD 402TA1 is designed with a vertical-to-horizontal tilt feature to help keep larger paper stacks from bending.

Variable vibration speed and air pressure controls allow press sheets and digital printouts to be air-dried immediately, ready for further processing. The 402TA1's bin can hold up to 940 sheets at once!

Product Features:

  • Align, Dry, Remove Static in One Step: The FD 402TA1 Tabletop Air Jogger is ideal for print shops and production houses with limited space. It aligns and dries printed sheets in a single process while reducing static electricity.
  • Variable Speed Control: Up to 2500 vibrations per minute
  • Variable Air Pressure Control: Up to 29000 rpm reduces jogging time
  • Tilting Jog Bin: V-shaped bin adjusts from vertical to horizontal to accommodate various operating requirements, including large format paper stacks, and criss-cross stacked piles
  • High Capacity: Jogs up to 940 sheets 20#
  • Operating Modes: Vibrate and Air, Air-only and Vibrate-only

Product Specifications

Model FD 402TA1
Media Size: 5" x 7" Min - 12" x 18" Max
Sheet Capacity: Up to 940 sheets (20# paper)
Variable Air Control: Up to 29,000 rpm
Variable Vibration Speed: Up to 2,500 vpm
Bin Size: 3.75" D x 20.375" W
Dimensions 21" W x 15" L x 23" H
Weight 60 lbs.
Voltage: 110V/120V, 50/60 Hz, recommended 4A dedicated line (110V)
220V/240V, 50/60 Hz, recommended 3A dedicated line (220V)
Safety Certifications: CE approved
Warranty: 90 days
*A 12-month Service Agreement is available for additional purchase. Please contact Customer Service for details.
