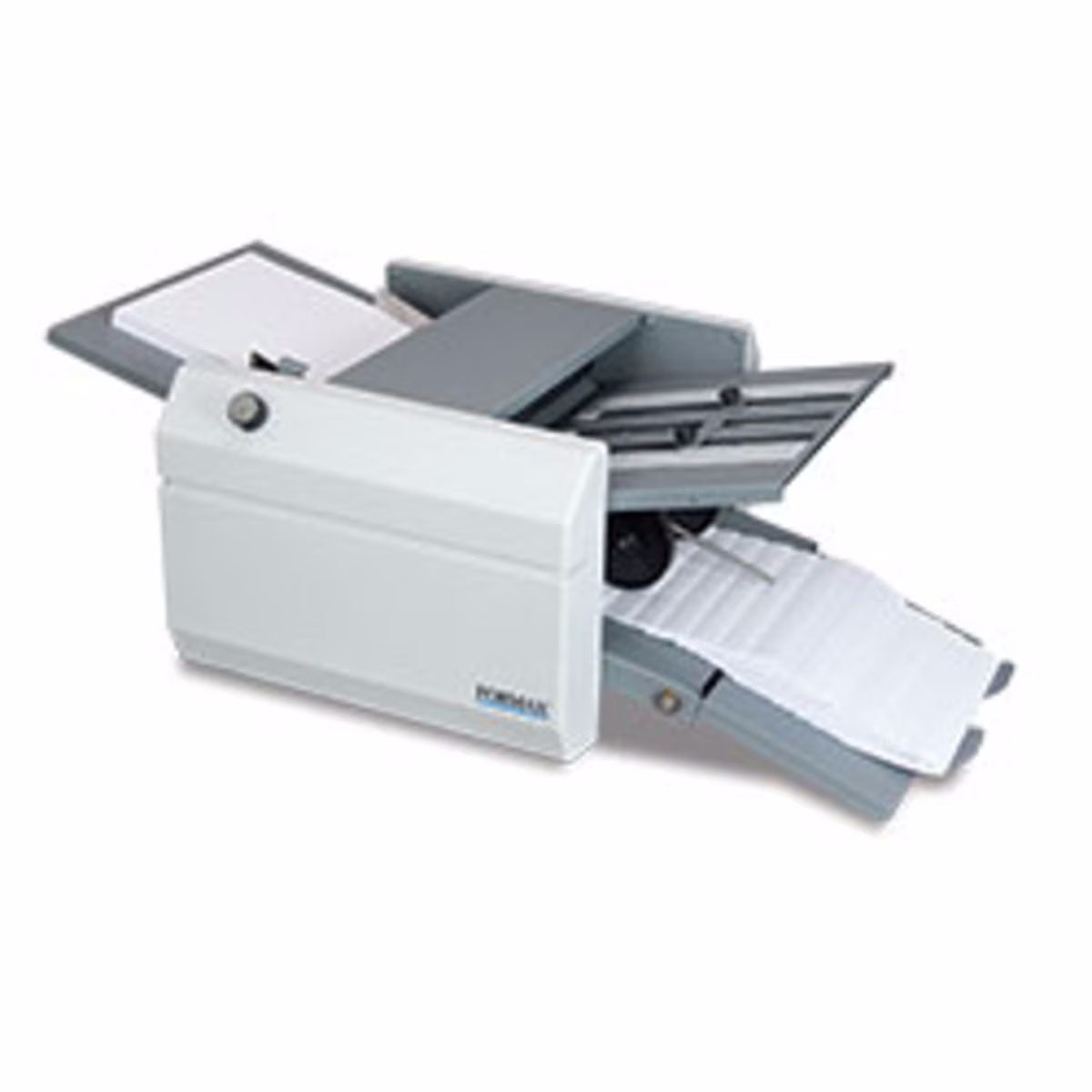

Formax FD 322 Document Folder

Economical Folding Solution

The FD 322 Document Folder offers an unmatched level of performance and affordability. Designed with ease of operation in mind, the FD 322 utilizes a drop-in feed system, eliminating the need to fan paper. Clearly marked fold settings and removable top and bottom fold plates make this folder ideal for churches, schools, businesses or departments that demand quick and easy set-up and operation.

An extended conveyor allows operators to run most applications without having to unload the output before the infeed is empty. As with all Formax folders, the FD 322 consists of heavy-duty steel frame and molded, high-impact side covers for durability.

Pre-Marked Fold Types: Letter, Accordion, Half

Examples of Custom Fold Types: Gate, Fold-Out, Double Parallel

Product Features:

• Pre-Marked for Three Popular Folds: Letter, Accordion and Half Fold in 11 in., 14 in., and 17 in. lengths
• Extended Outfeed Conveyor: Allows for neat and sequential stacking of folded documents

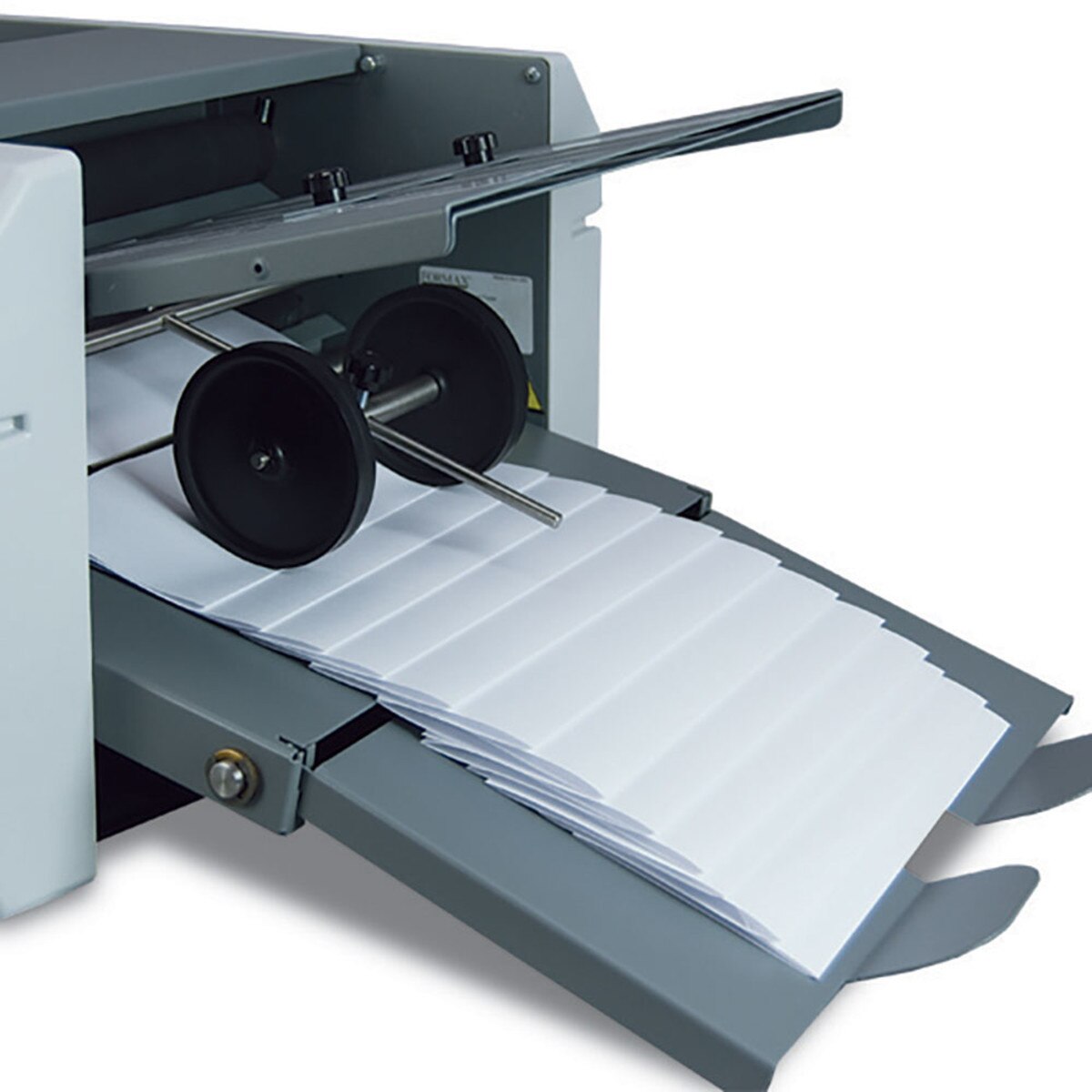

• Drop-In Feed System: No fanning of paper required. Simply square the paper and load it in the feed tray
• Three-Tire Friction Feed System: Accurately pulls paper into the folder

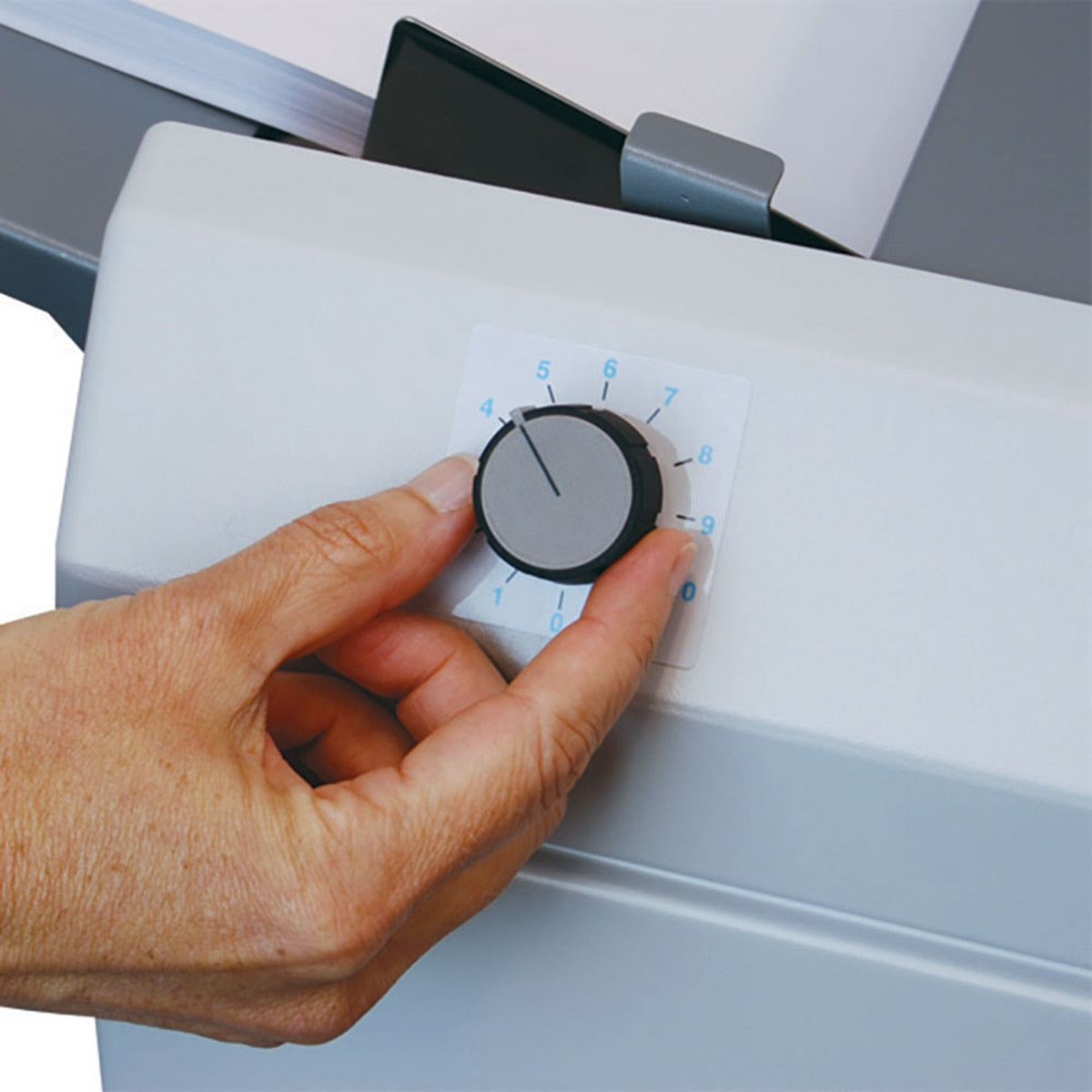

• Variable Speed: Up to 11,000 sheets per hour

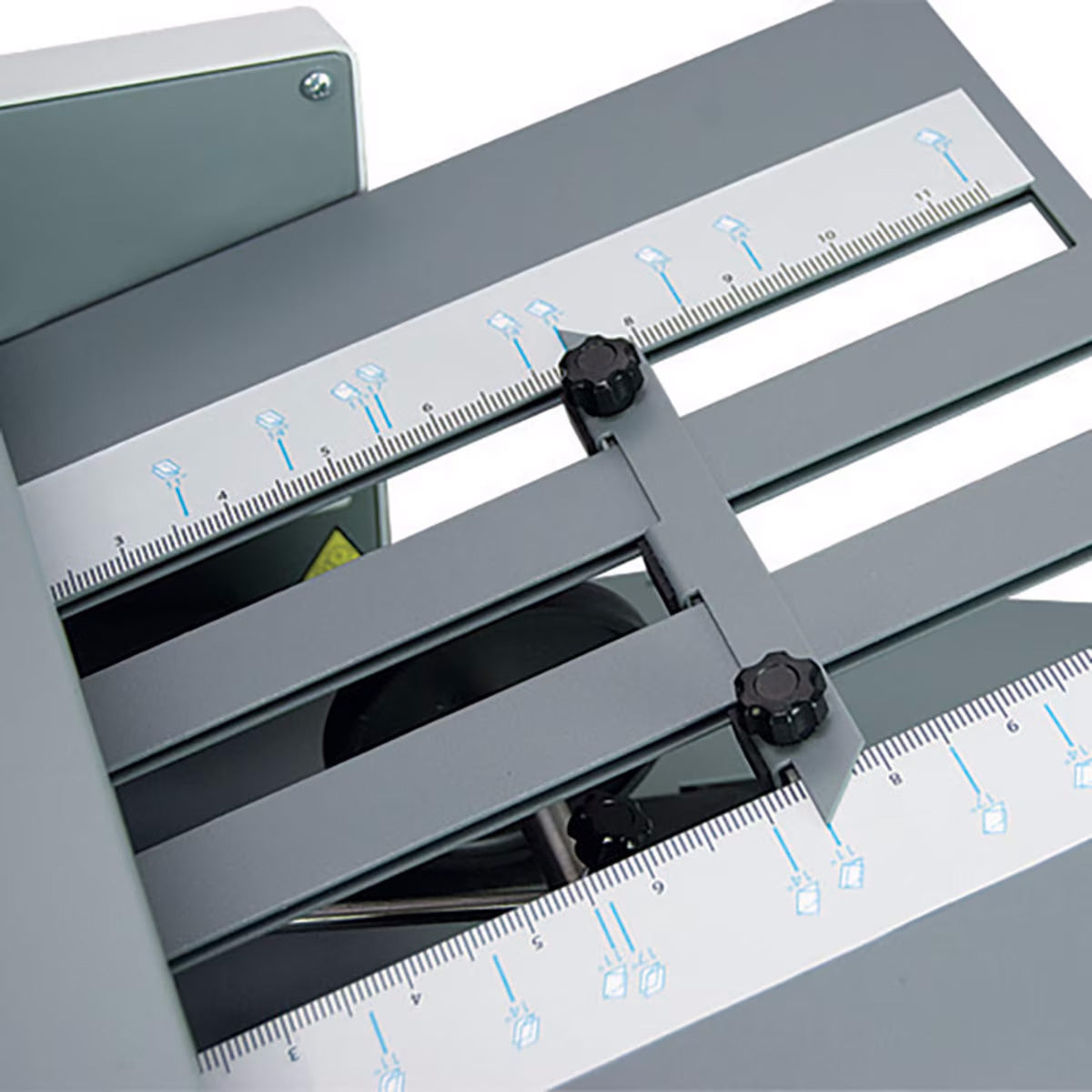

• Paper Sizes: Handles paper sizes up to 11-3/4 in. x 18 in.
• Skew Adjustment: Adjusts feed table left or right for crisp, accurate folds

This machine pairs well with the Formax 402 Series Paper Joggers, which align pages and reduce static electricity commonly caused by printers.

Model FD 322
Hopper Capacity Up to 250 sheets 20#
Speed Up to 11,000 sheets per hour
Paper Size Min: 3-1/8 in. W x 4 in. L (80mm W x 100mm L)
Max: 11-3/4 in. W x 18 in. L (298mm W x 432mm L)
Dimensions 38 in. L x 18 in. W x 11 in. H
97cm L x 46cm W x 28cm H)
Weight 55 lbs. (25kg)
Power 110V AC, 50/60Hz
