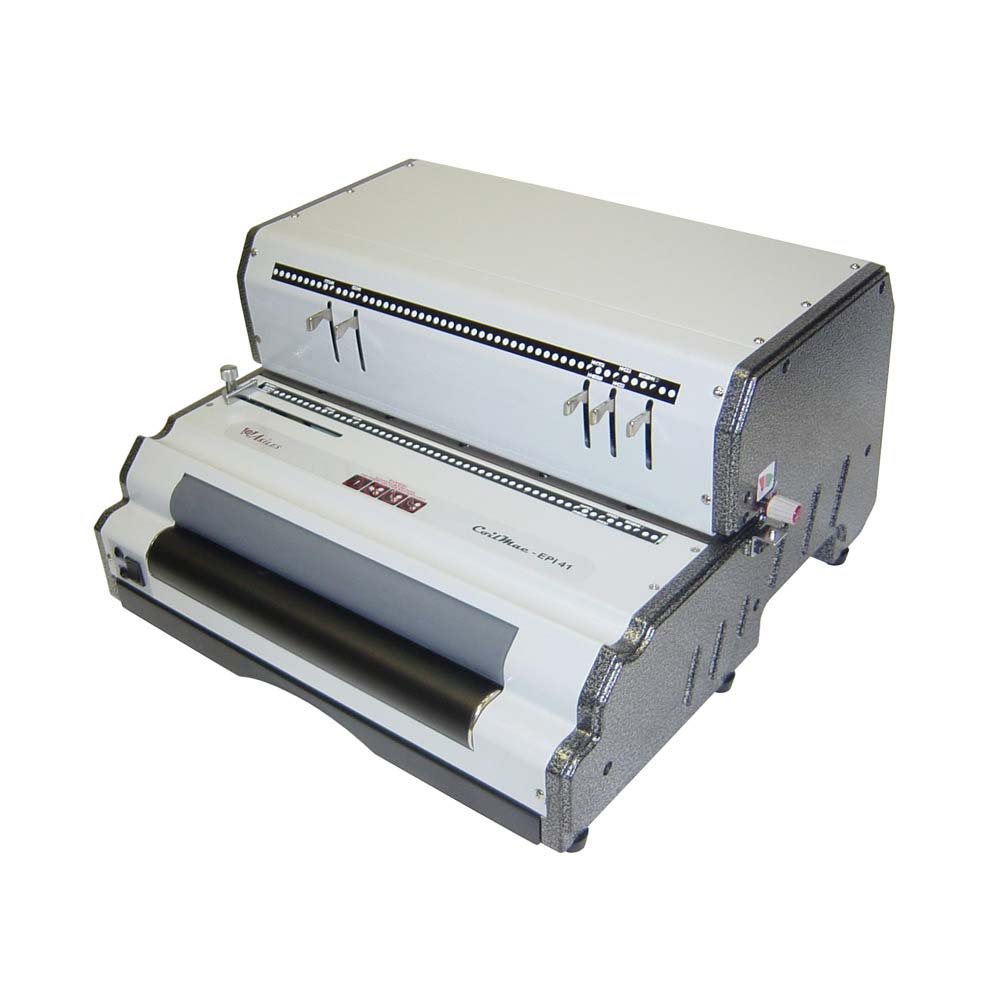

Akiles CoilMac-EPI Electric Spiral Binding Machine w/Elec Inserter

Download .PDF Product Brochure

The Akiles CoilMac-EPI coil binding machine is a heavy-duty, all-electric binding machine capable of handling commercial-volume workloads. The CoilMac-EPI is equipped with a powerful electric punch that is capable of up to 25 sheets at once (based on 20 lb. paper) that uses Akiles' exclusive "Precision Guiding System" to ensure a clean, precise punch every time. This model has 5 disengaging dies as well as an open punching throat and continuous punching guide, which give it the ability to punch a wide variety of document sizes. The CoilMac-EPI has a full-length electric coil inserter that is designed for heavy-duty use, with an industrial-grade roller motor and foot pedal operation. The double-roller inserter is capable of inserting coils up to 7/8" in diameter (coils up to 2" in diameter can be inserted manually). The CoilMac-EPI is backed by a one-year manufacturer's warranty, and its durable, all-metal construction will provide you with years of trouble-free use. Free premium coil crimping tool is included. The CoilMac-EPI is compatible with all standard 4:1 pitch binding coils, including GBC Color Coils.

Product Summary:

• Round Holes: Standard 4mm round holes.
• 5 Disengageable Pins: Specially designed disengageable positions guarantee a clean punch with most standard paper sizes, making the CoilMac-ECI very simple to use.
• STANDARD 4:1 Pitch (0.250”): Standard pitch for coil binding. Punches 43 holes in a 11” sheet.
• All Electric Operation: Powerful punching & inserting capability with a simple press of foot pedal.
• Extended Single Punching Length (13”): With open ends & continuous punch guide to easily punch documents of any length (up to 26").
• High Volume Punch Capacity: Suggested up to 25-sheet for 20 lbs paper, or 2.6mm (28-sheet equivalent) for hardboard*, in 13” length (53 holes).
• Super Strength Punch Mechanism with exclusive “Precision Guiding System TM” Blade Set: Cast-hardened & heat-treated steel dies provide superior strength & hardness. Exclusive “precision guiding system” guarantees a sharp & clean perforation everytime.
• Electric Reverse (Anti-Jam) Function: For trouble-free punching.
• Full Length Heavy-Duty Electric Coil Inserter with Double Roller Mechanism: 11-3/8” EPDM roller provides high friction and durability, making this inserter one of the easiest-to-use & most durable. Front-mounted roller position gives operator greater control & improves efficiency. Foot-pedal operated. Plastic & Metal coil compatible.
• Industrial-Grade Roller Motor: Heavy-Duty motor (3 times heavier-duty than other similar machines in its class).
• U-shaped Alignment Channel: Assists the operator to properly shape the document’s spine, for faster & easier coil insertion.
• Side Margin Control: Provides an evenly centered punch for all document sizes.
• Punching Margin Control: Provides the correct punch-margin-depth for each coil size and maximizes the document's tear resistance.
• Open Throat and Continuous Punch Guide: For an easy alignment and punching of longer documents up to 26”.
• Rugged ALL Metal Construction: Makes it the most reliable & durable coil binding system in its class.
• Extra-High-Capacity Waste Drawer
• 6 Height-Adjustable Non-Skid Metal Feet
• CE Certification: All components certified & approved by CE for most stringent safety requirements.
• ISO9001 & 14001 Quality: Manufactured under ISO9001 & 14001 guidelines for highest quality control & environmental management standards
• Includes Coil Diameter Selector & Premium Coil Crimpers

* = To punch thicker materials (such as hardboard), simply remove the punch throat shield & proceed to punch.
