Rhin-O-Tuff | SKU:
RT-7700DIE-41O-2362

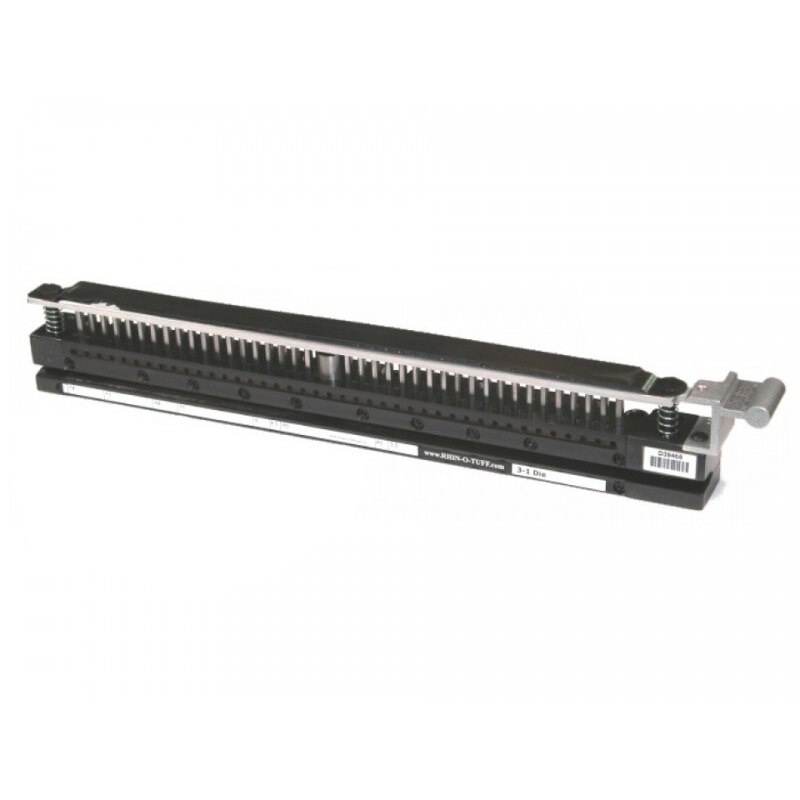

Rhin-O-Tuff 14" Die for HD7725 or HD7725H Modular Punch
$1,514.00
Unit price /
Unavailable
Shipping calculated at checkout.
Rhin-O-Tuff 14" Die for HD7725 or HD7725H Modular Punch - 4:1 Oval (Coil) 6mm Pitch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Broaden your binding style options by purchasing additional dies for the Rhin-O-Tuff HD7725 or HD7725H 14" Vertical Table Top Modular Punch machines.
Rhin-O-Tuff 14" Die for HD7725 or HD7725H Modular Punch
From
$1,228.00
Unit price /
Unavailable
Product Features
Product Features
Die Specifications
Die Specifications
| Die | Binding Type | Hole Pitch | Diameter | Margin | Sheets Per Punch |
|---|---|---|---|---|---|
| 4:1 Oval (Coil) 6mm Pitch | Coil | 6mm |
0.138" Wide 0.173" Tall |
0.188" | 40 |
| 4:1 Oval (Coil) 0.250" Pitch | Coil | 0.250" |
0.138" Wide 0.173" Tall |
0.188" | 40 |
| 4:1 Oval (Coil) 0.2475" Pitch | Coil | 0.2475" |
0.156" Wide 0.188" Tall |
0.188" | 40 |
| 2.5:1 Round (Coil) 0.400" Pitch | Coil | 0.400" | 0.250" | 0.250" | 40 |
| 5:1 Round (Coil) 0.200" Pitch | Coil | 0.200" | 0.141" | 0.160" | 40 |
| 4:1 Round (Coil) 0.250" Pitch | Coil | 0.250" | 0.172" | 0.188" | 40 |
| 4:1 Round (Coil) 0.2475" Pitch | Coil | 0.2475" | 0.172" | 0.188" | 40 |
| 4:1 Round (Coil) 0.248" Pitch | Coil | 0.248" | 0.188" | 0.188" | 40 |
| 2:1 Round (Wire) | Wire | 0.500" | 0.250" | 0.250" | 40 |
| 2:1 Square (Wire) | Wire | 0.500" | 0.250" | 0.250" | 40 |
| 2:1 Rectangle (Wire) | Wire | 0.500" |
0.250″ Wide 0.125″ Tall |
0.188" | 40 |
| 3:1 Round (Wire) | Wire | 0.333" | 0.172" | 0.168" | 40 |
| 3:1 Square (Wire) | Wire | 0.333" | 0.156" | 0.179" | 40 |
| 3:1 Square (Oversized) (Wire) | Wire | 0.333" | 0.1875" | 0.179" | 40 |
| 9/16" Rectangular (Comb) | Comb | 0.5625" |
0.313" Wide 0.125" Tall |
0.245" to 0.156" |
47 |
| 3 Hole (Ring Bind) | Ring Bind | 4.250" | 0.313" | 0.313" | 55 |
| VeloBind | VeloBind | 1" & 4 Prong | 0.125" | 0.125" | 55 |
