Rhin-O-Tuff 14" Die for HD7000 Modular Punch - Lamination Depot

Free shipping on qualifying orders over $99

Questions? Call (800) 925-0054
Rhin-O-Tuff  |  SKU: RT-6500-7000-DIE-21RC

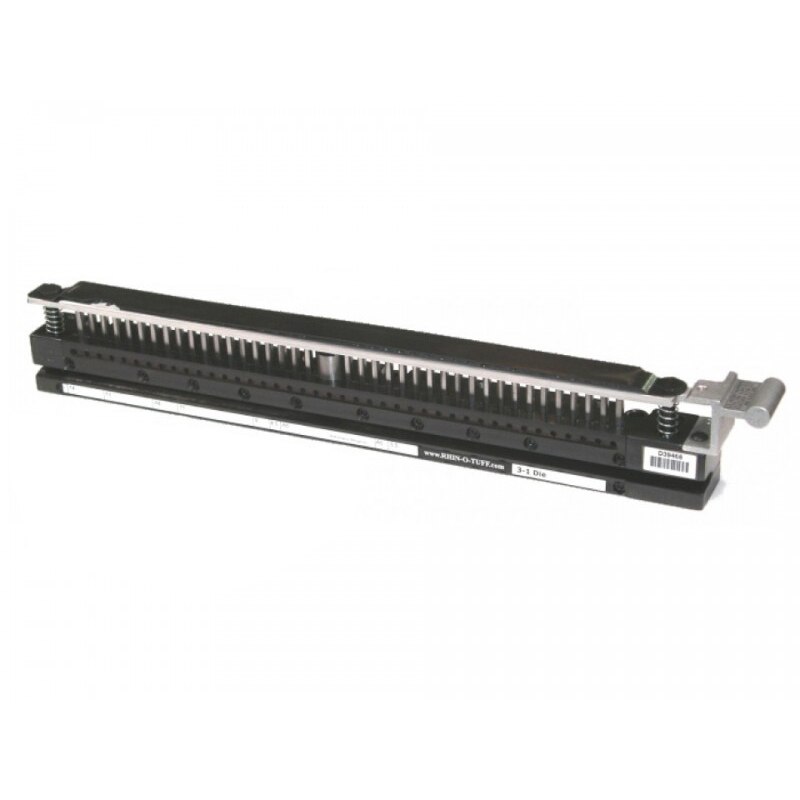

Rhin-O-Tuff 14" Die for HD7000 Modular Punch

$970.00
Shipping calculated at checkout.
Select Die Option

Broaden your binding style options by purchasing additional dies for the Rhin-O-Tuff HD7000 14" Vertical Table Top Modular Punch machine.

Product Features
  • Punches: Coil, Comb, & Wire
  • Die Type: Modular (Interchangeable)
  • Die Options: 17 punch patterns, all 14" open-ended, extra-capacity dies
  • Disengaging Pins: Allows for smaller or non-standard pages
  • Dimensions: 24" L x 6" W x 5" H
  • Weight: 12 lbs
  • Warranty: 1 Year
  • 100% Made in the U.S.A.

Die Specifications
Die Binding Type Hole Pitch Diameter Margin Sheets Per Punch
2:1 Rectangle (Wire) Wire 0.500″ 0.250″ Wide
0.125″ Tall 		0.188″ 30
2:1 Round (Wire) Wire 0.500″ 0.250″ 0.250″ 30
2:1 Square (Wire) Wire 0.500″ 0.250″ 0.250″ 30
2.5:1 Round (Coil) 0.400″ Pitch Coil 0.400″ 0.250″ 0.250″ 30
3:1 Round (Coil) 0.333″ Pitch Coil 0.333″ 0.172″ 0.168″ 30
3:1 Round (Thumbcut) (Wire) Wire 0.333″ 0.172″ 0.168″ 40
3:1 Square (Wire) Wire 0.333″ 0.156″ 0.179″ 30
3:1 Square (Thumbcut) (Wire) Wire 0.333″ 0.156″ 0.179″ 30
4:1 Oval (Coil) 6mm Pitch Coil 6mm 0.138″ Wide
0.173″ Diameter 		0.188″ 30
4:1 Oval (Coil) 0.2475″ Pitch Coil 0.2475″ 0.156″ Wide
0.188″ Diameter 		0.188″ 30
4:1 Oval (Coil) 0.250″ Pitch Coil 0.250″ 0.138″ Wide
0.173″ Diameter 		0.188″ 30
4:1 Round (Coil) 0.248″ Pitch Coil 0.248″ 0.188″ 0.188″ 30
4:1 Round (Coil) 0.250″ Pitch Coil 0.250″ 0.172″ 0.188″ 30
5:1 Round (Coil) 0.200″ Pitch Coil 0.200″ 0.141″ 0.160″ 30
9/16" Rectangular (Comb) Comb 0.5625” 0.313” Wide
0.125” Tall 		0.245" to 0.156" 30
3-5-7 Hole (Ring Bind) Ring Bind 1″
1″
2.25″
2.25″
1″
1″ 		0.313" 0.375" 40
3:1 Square (Oversized) (Wire) Wire 0.333" 0.1875" 0.179" 30
VeloBind VeloBind 1" & 4 Prong 0.125" 0.125" 40
