Rhin-O-Tuff  |  SKU: RT-HD7500H

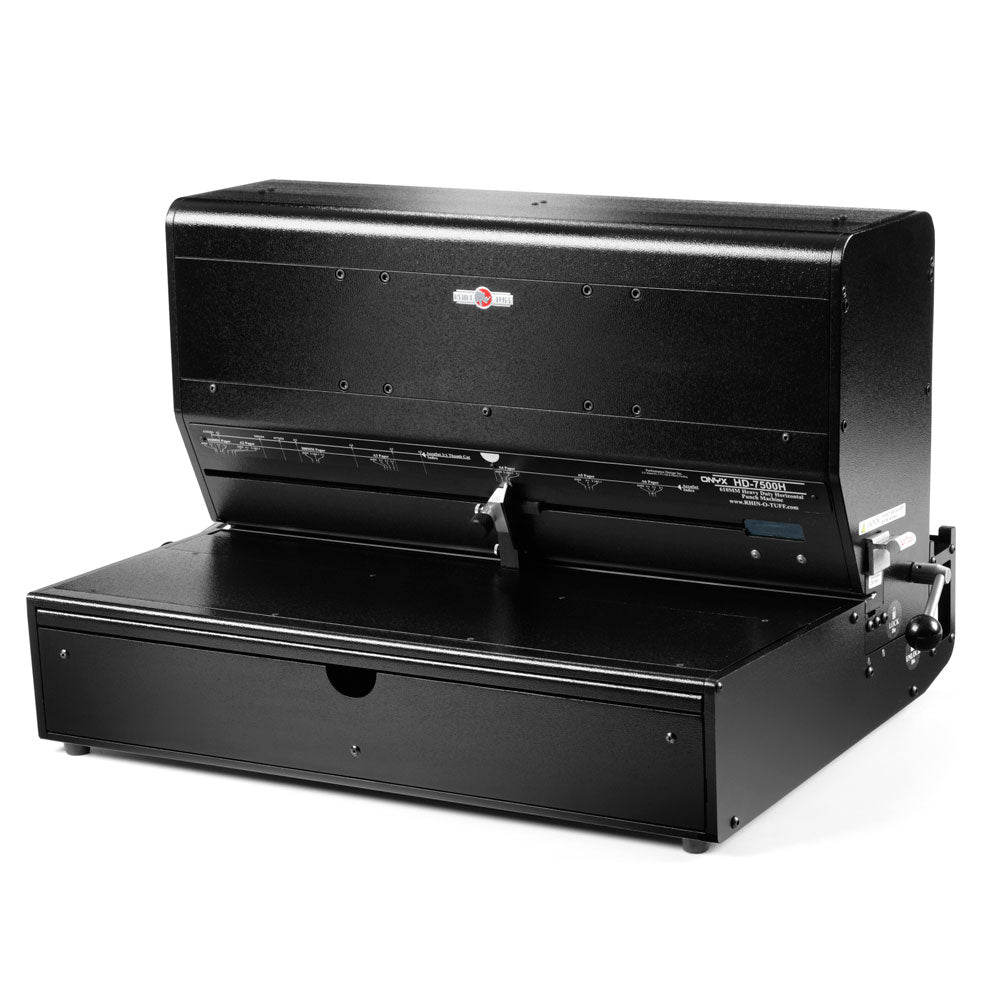

Rhin-O-Tuff HD7500H 24" Horizontal Table Top Modular Punch

$6,799.00
Shipping calculated at checkout.
Select Die Option

Looking to tackle large-format binding projects with precision and ease? The Rhin-O-Tuff Onyx HD7500H Ultima 24" Horizontal Table Top Modular Punch is an excellent machine to use for calendars, artistic portfolios, blueprints, presentations, and other large binding projects. This heavy-duty, robust machine offers industrial durability as well as smooth, quiet, power-on-demand operation for a mid-to-high volume commercial environment.

Pages load into the machine level with the table top, rather than vertically dropping them into the die. Twin motors within the machine drive the punching action. The HD7500H features exceptional accuracy and efficiency, with its quick-change die system enabling rapid, tool-free die pattern swaps in just 30 seconds. With 13 die options, you can choose from a variety of binding styles with just one machine.

Download the HD7500H Operator Manual

Product Features
  • Punches: Coil, Comb, & Wire
  • Punching Operation: Electric
  • Die Type: Modular (Interchangeable)
  • Die Options: 13 punch patterns, all 24" open-ended, extra-capacity dies
  • Feeding: Horizontal
  • Open Throat: Allows for wider applications
  • Pull-Out Extension Table: Allows for larger-sized jobs
  • Disengaging Pins: Allows for smaller or non-standard pages
  • Quick Change Die System: Hassle-free die change process in just 30 seconds, no tools required
  • Premium Paper Stop & Scale System: Allows for quick adjustments and precise positioning
  • Built-In Die Storage: Fits 2 dies behind the HD7500H
  • High-Capacity Waste Tray: Holds up to 150% more waste than other table top punches
  • Warranty: 3 Years
  • 100% Made in the U.S.A.

Die Specifications
Die Binding Type Hole Pitch Diameter Margin Sheets Per Punch
2:1 Round (Wire) Wire 0.500″ 0.250″ 0.250″ 30
2:1 Square (Wire) Wire 0.500″ 0.250″ 0.250″ 30
2.5:1 Round (Coil) 0.400" Pitch Coil 0.400″ 0.250″ 0.250″ 30
3:1 Round (Coil) 0.333" Pitch Coil 0.333″ 0.172″ 0.168″ 30
3:1 Round (Thumbcut) (Wire) Wire 0.333″ 0.172″ 0.168″ 30
3:1 Square (Wire) Wire 0.333″ 0.156″ 0.179″ 30
3:1 Square (Thumbcut) (Wire) Wire 0.333″ 0.156″ 0.179″ 30
4:1 Round (Coil) 0.2475" Pitch Coil 0.2475″ 0.172″ 0.188″ 30
4:1 Round (Coil) 0.248" Pitch Coil 0.248″ 0.188″ 0.188″ 30
4:1 Round (Coil) 0.250" Pitch Coil 0.250″ 0.172″ 0.188″ 30
5:1 Round (Coil) 0.200" Pitch Coil 0.200″ 0.141″ 0.160″ 30
9/16" Rectangular (Comb) Comb 0.5625″ 0.313″ Wide
0.125″ Tall 		0.245″ to 0.156″ 30
3-5-7 Hole (Ring Bind) Ring Bind 1″
1″
2.25″
2.25″
1″
1″ 		0.313″ 0.375″ 30
