James Burn  |  SKU: ALPHADOCM4US

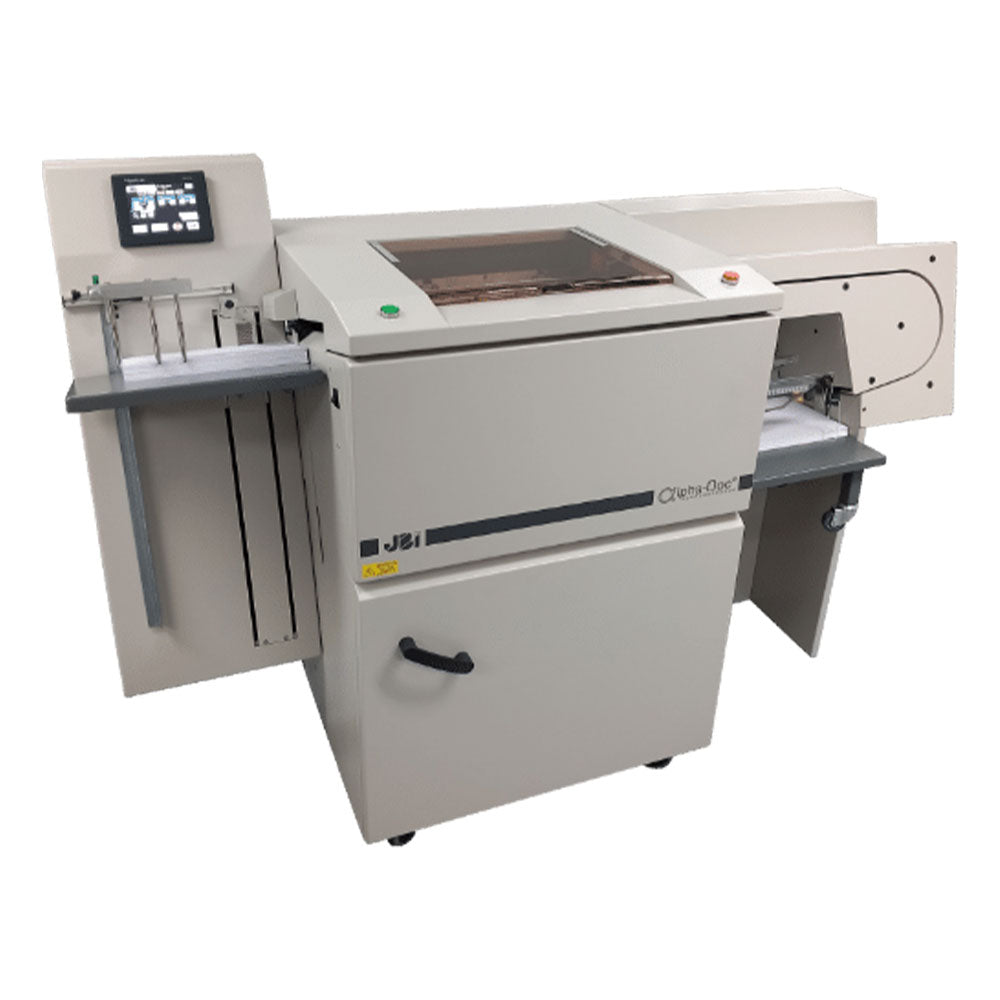

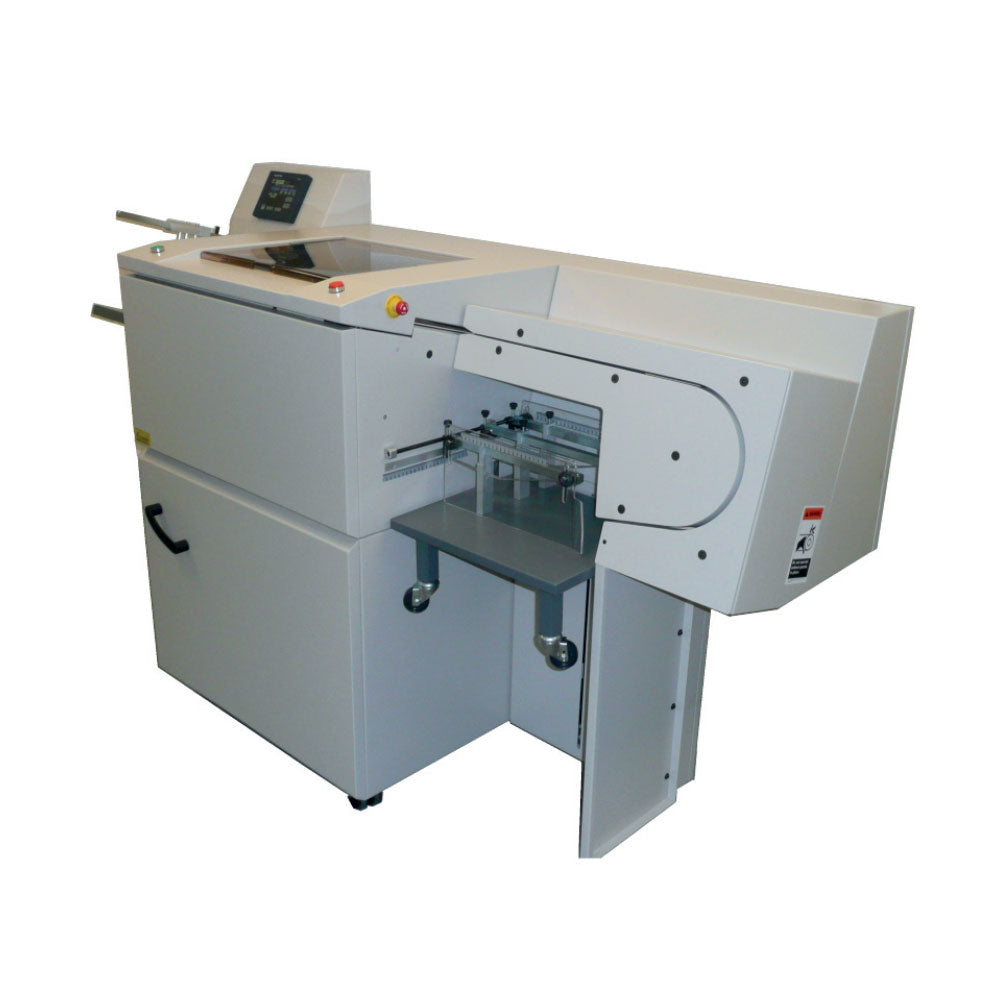

James Burn AlphaDoc Automatic Punch

$46,890.00
Shipping calculated at checkout.

Additional Freight Charges Apply. Please contact (800) 925-0054 or service@laminationdepot.com for a freight quote.


The James Burn AlphaDoc MK4 is a high-speed automatic punch machine designed for medium to high volume use. The AlphaDoc MK4 accommodates materials from 70 to 300 gsm, including acetates and plastic covers. It features a diverse set of punching patterns (including thumb cuts), and can punch pre-collated tabbed sheets. It's an ideal choice for producing desktop planners, as it can also punch sheets with an unpunched edge down to 105mm.

The AlphaDoc MK4 is a high-speed machine that can punch up to 65 reams an hour. It can be operated swiftly and easily, with a setup time of less than 2 minutes and hands-free electric operation. Simply load the paper, turn it on, and walk away.

  • Versatile: Punches a wide variety of paper stocks, covers, and tabbed sheets
  • High Productivity: Combines a top speed of 90 cycles / min and a large capacity of 6 reams per tray, allowing you to punch 54,000 sheets per hour
  • Diverse Punch Patterns: Dies for coil, comb, wire, perforation and more
  • Easy-to-Use: Automatic operation with a conversational touch screen and pre-set formatting
  • Durable: Dies are made of Lhermite original hardened steel to last a lifetime

Product Manual & Specifications

Download operating manual here

  • Dimensions: 72.8" x 27.9" x 48.8"
  • Weight: 1050 lbs
  • Electrical Requirements: 220/240V 50Hz
  • Warranty: 2 Years

Product Features

  • Punches: Coil, Comb, & Wire
  • Punching Operation: Electric
  • Die Type: Modular (Interchangeable)
  • Die Options: 5 punch patterns
  • Punching Length: 4"-14"
  • Sheet Weight: 70gsm - 300gsm
  • Tray Capacity: 3,000 sheets (6 reams)
  • Additional Features: Touch Screen Control Panel

Die Specifications

Die Punch Pattern Binding Type Hole Size Margin Disengagable Dies

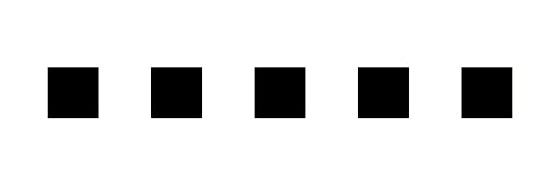

3:1 Square (Wire) Product A Square 4x4mm 2.36mm 11 of 42
3:1 Square (Wire) - Fully Disengagable Product A Square 4x4mm 2.36mm 42 of 42
2:1 Square (Wire) Product A Square 6x6mm 3mm 10 of 28
2:1 Square (Wire) - Fully Disengagable Product A Square 6x6mm 3mm 28 of 28
0.2475" Oval (Coil) Product A Oval 4x5mm 2.5mm 21 of 58
